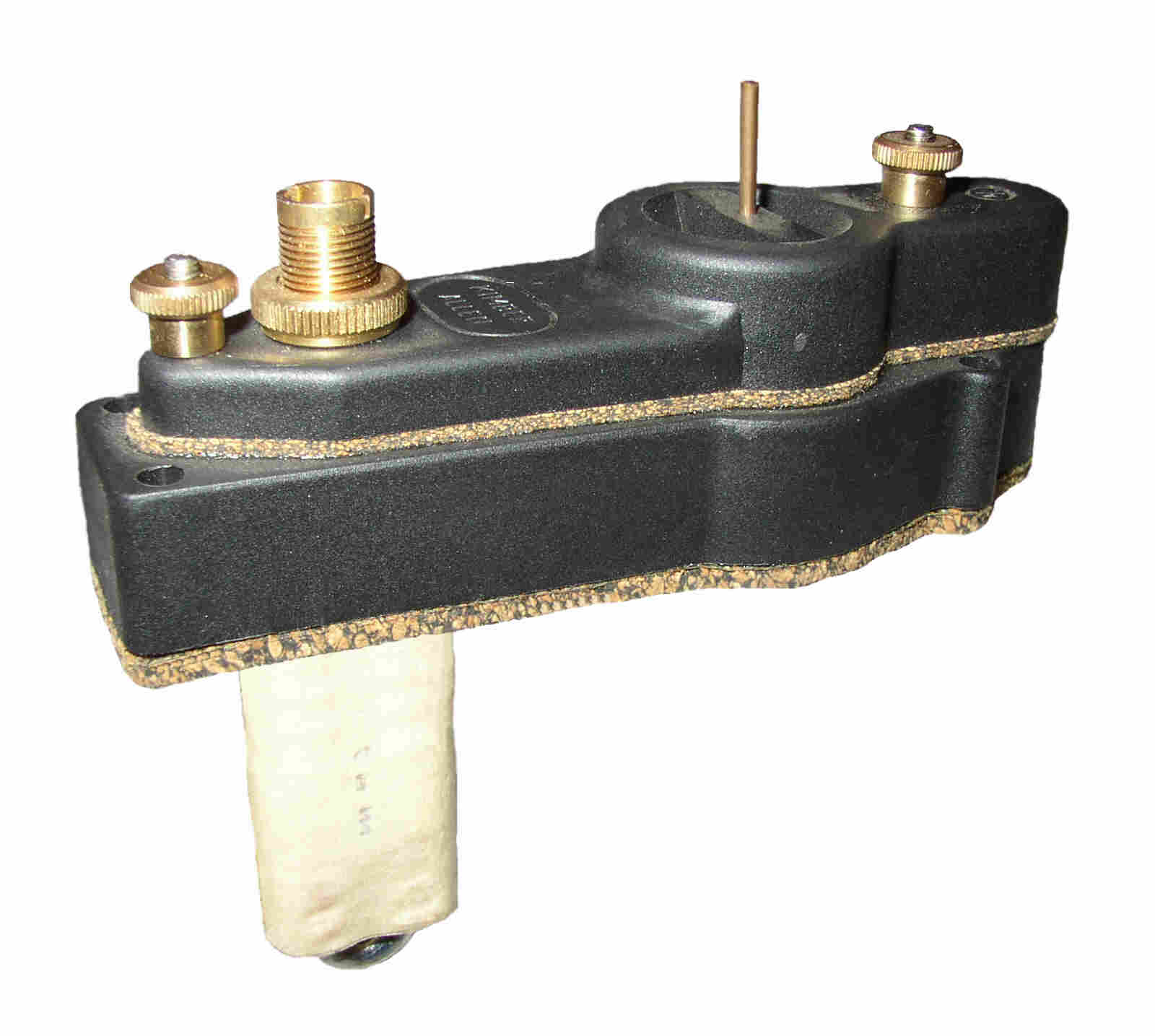

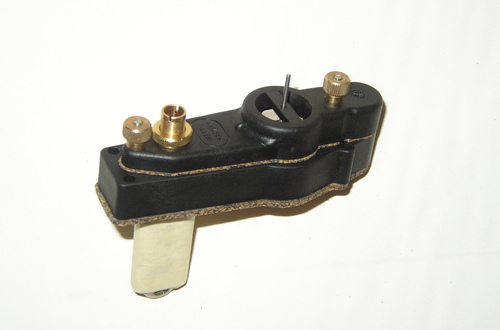

K-A UK LTD. 9/16" & 3/4" COMPOUND MAGNETS



ALL SIZES ARE NOW AVAILABLE WITH EITHER FLOATING OR HINGED ARMATURE VALVE.

We now have several thousands of the Compound Magnets in use in the UK, Europe, Canada and the USA, and we would like to thank our many customers for their help and encouragement in introducing this product.

Our design is the traditional format for Compound Magnets but uses modern, high performance, materials in the form of rigid, Glass Filled Nylon for the cap and base mouldings, while retaining high quality brass for the external fittings and natural leather for the all important valves and diaphragm, ensuring reliability and long service life.


RECENT IMPROVEMENTS

Recent improvements include:-

Hinged armature valve.

2 Separate valves on the exhaust port so that movement can be adjusted independently in either direction.

Stronger, stainless steel, adjuster rod for the exhaust valve.

Ability to releather diaphragm if it should ever be necessary.


As the 1/2" and 9/16" units are physically the same size and
share the same footprint we no longer offer the 1/2" unit, and will substitute the 9/16" unit when 1/2" are ordered.  This is advantageous in application as the 9/16" unit conducts a larger volume of air.

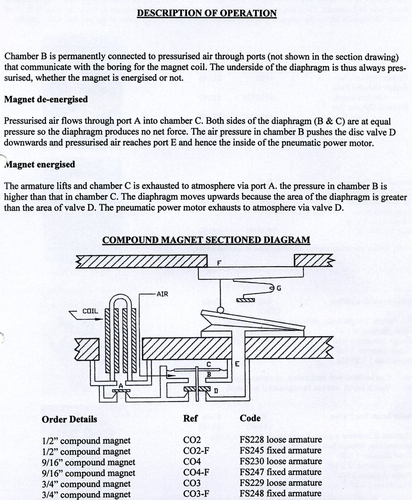

ORDER DETAILS:

9/16" Compound Magnet
Order Code FS230
Ref. CO4.


3/4" Compound Magnet
Order Code FS229
Ref. C03.
